Document Type : Original Article
Authors
1 Department of Tropical Medicine, Ain Shams University, Cairo, Abbasia, Egypt.
2 Department of Internal Medicine, Ain Shams University, Cairo, Abbasia, Egypt.
Abstract
Highlights
What is already known?
• Portal hypertension accompanies the presence of liver cirrhosis
• Esophageal varices (EV) is one of its serious complications
• Endoscopy is the most accurate way to check for EV
What is new in this study?
• Considerable interest in developing models to predict the presence of EV
• PAPAS index is a novel score for prediction of esophageal varices in HCV- related cirrhotic patients
What are the future clinical and research implications of the study findings?
• NOVAL SCORE may aid in further improvement of the quality of non-invasive screening of EVs and large EVs
Keywords
Main Subjects
INTROODUCTION
Portal hypertension (PHT) commonly accompanies the presence of liver cirrhosis; therefore, the development of esophageal varices (EV) is one of the most serious consequences of (PHT). The prevalence of esophageal varices varies according to the severity of liver disease in cirrhotic people, ranging from 24% to 69% [1]. The incidence of EV formation is 5% per year in individuals with cirrhosis, and progression from small to large varices occurs in 10% to 20% of cases after one year [1]. In Egypt, 77 % of patients with portal hypertension were found to have EV [3]. Between 25% and 40% of patients with cirrhosis and varices experience variceal bleeding [4]. Large variceal bleeding accounts for 30% to 53% of all variceal bleeding, while small variceal bleeding accounts for 5% to 18% of all variceal bleeding [2].
In Egypt, bleeding esophageal varices account for 53.3 percent of all bleeding cases [5]. Each variceal hemorrhage event is expected to have a mortality rate of 17–57% [6]. Within the first two years after varices are discovered, the incidence of the initial bleeding incident ranges between 20% and 40% of all cases. As a result, preventing esophageal variceal bleeding is crucial for long-term care of liver cirrhosis [7].
When liver cirrhosis is confirmed, the American Association for the Study of Liver Disease (AASLD) and the Baveno V Consensus Conference on portal hypertension urge that cirrhotic patient be evaluated for the presence of EV using esophago-gastro-duodenoscopy (EGD) [8,9].
Additionally, EGD should be repeated at 3-year intervals in patients without varices and compensated cirrhosis, and at 2-year intervals in patients with minor varices to assess the development or advancement of this characteristic. EGD should also be done annually if there is indication of hepatic decompensation [10]. These recommendations imply a significant burden on endoscopies and related costs because they require patients to undergo an unpleasant invasive procedure repeatedly, even though the majority of subjects undergoing screening EGD either do not have varices or have varices that do not require prophylactic therapy [11].
Many patients, on the other hand, avoid repeated endoscopies due to discomfort and worry of infection transfer or contribution due to disturbance of the natural barriers [12]. Additionally, sedated endoscopy in a cirrhotic patient can be harmful [13]. As a result, there is considerable interest in creating non-endoscopic models for predicting the presence of esophageal varices, particularly those associated with increased risk. Numerous models for predicting fibrosis and varices, such as the AST/platelet radio index (APRI) and the FIB-4 index, have been established on patients with chronic hepatitis C [14].
Seto and colleagues developed a new model to predict significant liver fibrosis (i.e., Ishak fibrosis score 3) using the formula Log (index+1) = 0.0255+ 0.0031 age (years) + 0.1483 log ALP (U/L) + 0.004 log AST (U/L) + 0.0908 log AFP (ng/L +1 -0.028log platelet count (109/L) [15]. According to Ozelet and colleagues, the PAPAS index was also beneficial for discriminating cirrhosis in persons with CHC, with a negative predictive value (NPV of 83.85%) [16]. The purpose of this study was to determine whether the PAPAS index (Platelet/ Age/ Phosphatase/ AFP/ AST) could be used to predict the presence of EV in patients with HCV-related cirrhosis.
PATIENTS AND METHODS
Study design and participants
This study was conducted in a cross-sectional manner. 100 cirrhotic patients at any stage were recruited from the Tropical Medicine department, Tropical outpatient clinic, and endoscopy unit to help us achieve our goal. Cirrhosis was diagnosed using a combination of clinical, biochemical, imaging, and histological data, as well as a fibroscan where necessary.
Exclusion criteria
(1) Patients with current gastrointestinal bleeding, (2) Patients who had previously undergone band ligation or variceal sclerotherapy, (3) Patients who had previously undergone Trans jugular intrahepatic Porto systemic shunt, or surgery for portal hypertension were all excluded. (4) Portal vein thrombosis, (5) Hepatocellular carcinoma, (6) advanced other organ malignancy (7) Patients taking drugs for the primary prophylaxis of variceal hemorrhage (8) Patients with ongoing alcohol usage (less than 6 months without alcohol, Patients with other causes of splenomegaly or thrombocytopenia (hematological illness), (9) Other severe medical condition (end stage renal disease, congestive heart failure or severe respiratory syndrome) (10) Patients with bilharziasis or a history of canal water exposure.
Study tools
All participants were subjected to the following at the outset:
(1) Written informed consent, (2) full history taking, (3) complete clinical examination, (4) biochemical examination (complete blood count, liver profile tests (ALT, AST, Albumin, PT, alkaline phosphatase, total bilirubin, INR), antibilharzial Ab, HBsAg, HCV-Ab, and serum creatinine), and (5) Abdominal ultrasonography was performed using a Toshiba "Just vision" real-time scanner instrument with a 3.5 MHz convex transducer (after an overnight fast) with a focus on Liver size, Liver echogenicity, Presence of periportal thickening, Portal vein diameter and patency, Splenic size, Splenic vein diameter and patency. Ascites condition (6) Upper GI endoscopy to assess the presence and severity of varices, as well as any other pertinent upper GIT abnormalities. The videoscope system was a Pentax EG-3440. To avoid interobserver variability, each patient's endoscopic examination was performed by the same examiner. According to Garcia et al. [8], esophageal varices (EV) were categorized into small and large varices (small; the varices can be depressed by endoscope, large; the varices cannot be depressed by endoscope and/or confluent around the circumferential) [7]. Varices with red spots were considered to qualify as HRVs.
All of the patients were categorized using Child-Pugh classification16 of the severity of liver disease according to the degree of ascites, the serum concentrations of bilirubin and albumin, the prothrombin time, and the degree of encephalopathy. Encephalopathy: None = 1 point, Grade 1 and 2 = 2 points, Grade 3 and 4 = 3 points. Ascites: None = 1 point, slight = 2 points, moderate = 3 points Bilirubin: under 2 mg/ml = 1 point, 2 to 3 mg/ml = 2 points, over 3 mg/ml = 3 points. Albumin: greater than 3.5mg/ml = 1 point, 2.8 to 3.5mg/ml = 2 points, less than 2.8mg/ml = 3 points. Prothrombin Time (sec prolonged): less than 4 sec = 1 point, 4 to 6 sec = 2 points, over 6 sec = 3 points. Frequently INR will be used as a substitute for PT, with INR under 1.7 = 1 point, INR 1.7 to 2.2 = 2 points, INR above 2.2 = 3 points. A total Child-Turcotte-Pugh score of 5 to 6 is considered Child-Pugh class A (well-compensated disease), 7 to 9 is class B (significant functional compromise), and 10 to 15 is class C (decompensated disease). These classes correlate with one- and two-year patient survival: class A: 100 and 85%; class B: 80 and 60%; and class C: 45 and 35%.
All patients had their PAPAS Index and other known accessible prediction scores calculated, PAPAS index: Log =0.0255 + 0.0031 × age + 0.1483 × log[ALP] + 0.004 × log[AST] + 0.0908 × log[AFP + 1]− 0.028 × log [platelet count)] [15]. (APRI) AST to platelets ratio index: [(AST/ULN) X100)]/platelets [17]. Fibrosis 4 index: (AgeXAST)/(PLTXALT½) [18]. Lok Score: -5.56–0.0089 X PLT+ 1.26 X AST/ALT+5.27 X INR [19].
Table (1): The simple noninvasive models being evaluated as a predictor of EV.
|
Equation |
Model |
|
[(AST/ULN) X100)]/platlets |
(APRI) AST to platelets ratio index |
|
(AgeXAST)/(PLTXALT½) |
FIB4 Fibrosis 4 index |
|
Log =0.0255 + 0.0031 × age + 0.1483 × log[ALP] + 0.004 × log[AST] + 0.0908 × log[AFP + 1]− 0.028 × log [platelet count)] |
(PAPAS) Platelet/Age/Phosphatase/AFP/AST |
|
-5.56–0.0089XPLT+ 1.26XAST/ALT+5.27XINR |
Lok Score |
PAPAS index: Platelet/Age/Phosphatase/AFP/AST [15]
APRI: AST to platelets ratio index: [17]
FIB4: Fibrosis 4 index [18] Lok Score [19]
Table (1). Within two weeks, the initial clinical evaluation, biochemical study, endoscopic evaluation, and spleen measurement were completed.
Statistical methods
Data descriptive statistics: Continuous data were presented in a variety of mean± SD formats (median; range). Numbers and percentages were used to present categorical data.
Data analytic statistics include: Student t-test (t value) for normally distributed parameters and Mann Whitney U test for non-parametric data distribution (z value), both tests were used to compare continuous data parameters between groups. The chi square test or Fisher exact test were used to compare groups and find relationships between categorical data characteristics (x2 value).
To determine the variables independently linked with the existence of EV, a ranked Spearman's Correlation Test was performed on all the characteristics that were substantially different in a univariate analysis between patients with EV and those without EV. The optimal sensitivity and specificity cut off values were determined using receiver operating characteristic curves (ROC curves). The area under the curve was used to determine the model's validity (AUC). PAPAS, FIB4, ABRI, and Lok scores were used to calculate sensitivity, specificity, positive predictive value (PPV), negative predictive value (NPV), and diagnostic accuracy (DA) as a non-invasive measure in the identification of esophageal varices. When the area under the curve (AUC) is greater than 0.7, the diagnostic accuracy of ROC is considered useful, and when the AUC is between 0.8 and 0.9, it is considered outstanding [31].
RESULTS

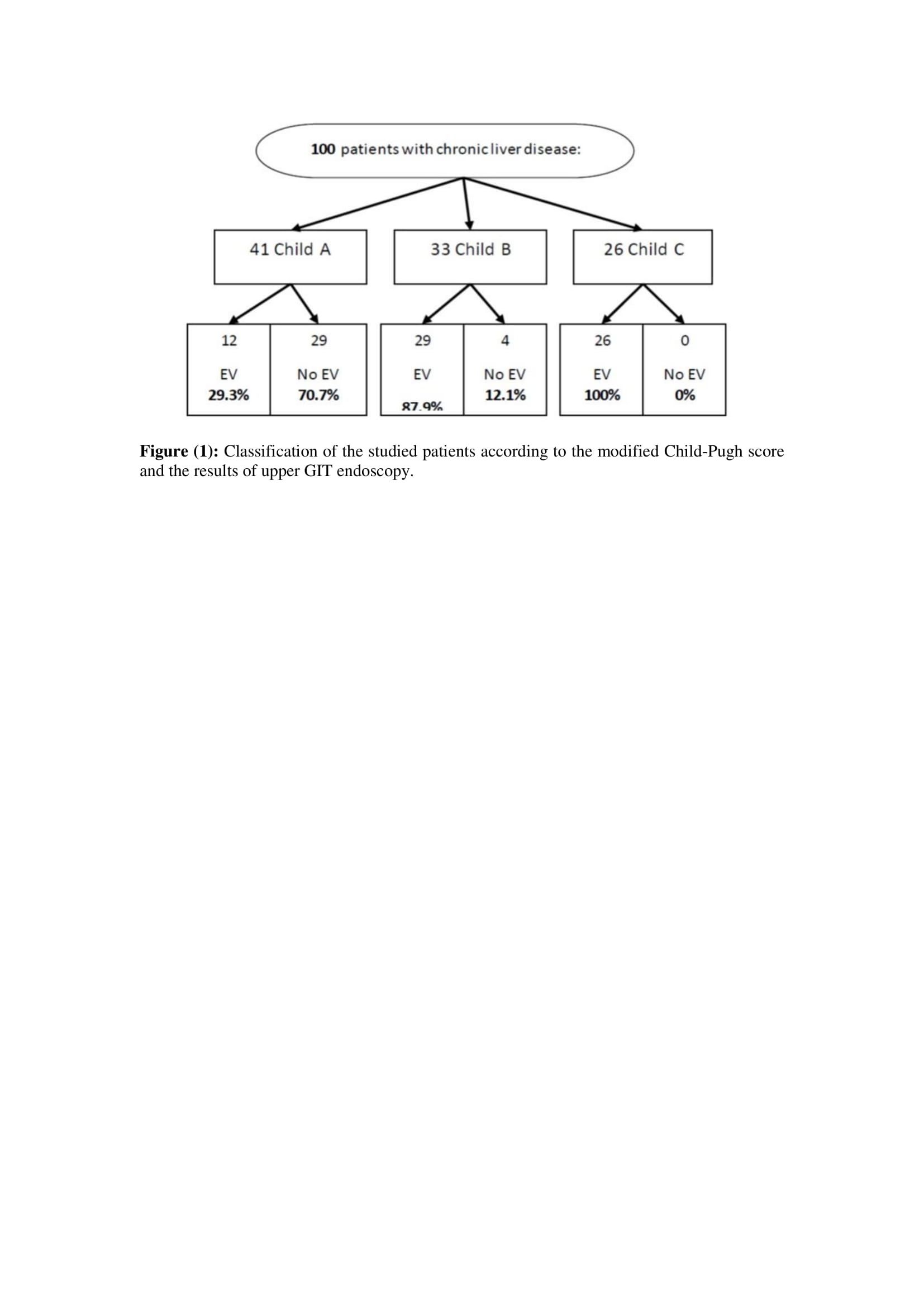

This Patients were divided into two groups based on the results of upper GIT endoscopy (Figure 1): There were 67 individuals (67.0%) in Group I who had esophageal varices (EV). This group was further divided into the following categories: Group Ia consisted of 28 patients (28.0%) with a small EV. Group Ib consisted of 39 patients (39.0%) with a large EV. Group II consisted of 33 individuals (33.0%), none of whom had esophageal varices. There were 58 males and 42 females with a mean age of 46.24± 7.05 years. 67% of patients in our study had EV, and 40% had HREV. We found that the Child-Pugh classification among our patients was 41 (41 percent), 33 (33 percent), and 26 (26 percent) in Child A, B, and C, respectively. Endoscopic studies revealed EV in around 67 % of cases, with large EV accounting for 39%. In 56 % of the cases, the portal hypertensive gastropathy (PHG) was found. The prevalence of EV was 29.3%, 87.9 percent, and 100% in child A, B, and C, respectively (Table 2). The level of serum albumin in patients with EV was found to be considerably lower than in those without EV (P value 0.001). In our study, patients with varices had a significantly lower platelet count than those without (p0.001). Patients with HREV had a lower platelet count than those without HREV (104.20± 26.96 vs 115.37± 26.96; P value =0.101), although this was not statistically significant in predicting HREV (Table 2). Ultrasonography revealed that patients with EV had a substantially greater average portal vein width (PVD) than patients without EV (p0.000) (13.73 1.81 vs 10.79 2.12 mm). PVD was also observed to be substantially greater in HREV patients than in non-HREV patients (p0.000) (14.35± 1.93 vs 12.81± 1.11mm). In terms of spleen diameter, this study found that patients with EV had a significantly larger spleen diameter (P0.001) than those without EV (Table 2). With a p value of 0.001, EV was substantially more prevalent in Child B and Child C patients compared to Child A patients (87.9%, 100%, and 29.3%, respectively) in the current study. These data indicate that patients with Child B and C cirrhosis have a greater risk of having varices and bleeding (Table 2).

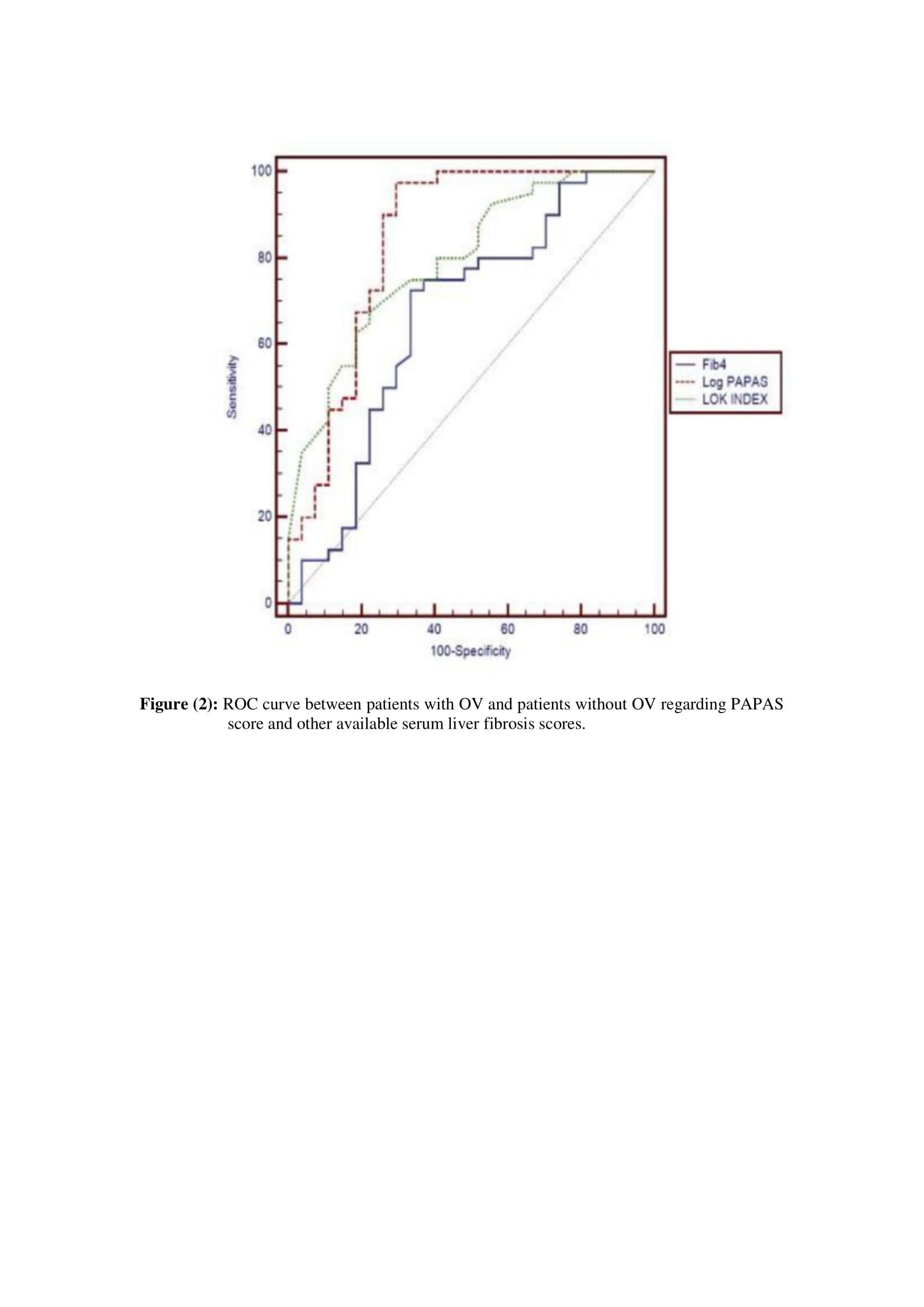

Our research found that an APRI score of >1.46 (AUC of 0.753) can predict the existence of EV with a sensitivity of 68 % and specificity of 80%. Despite the fact that the APRI score was much higher in large EV than in small EV (2.14 VS 1.76; Table 3 and Figure 2&3), the APRI score had no effect in predicting large varices in our study.

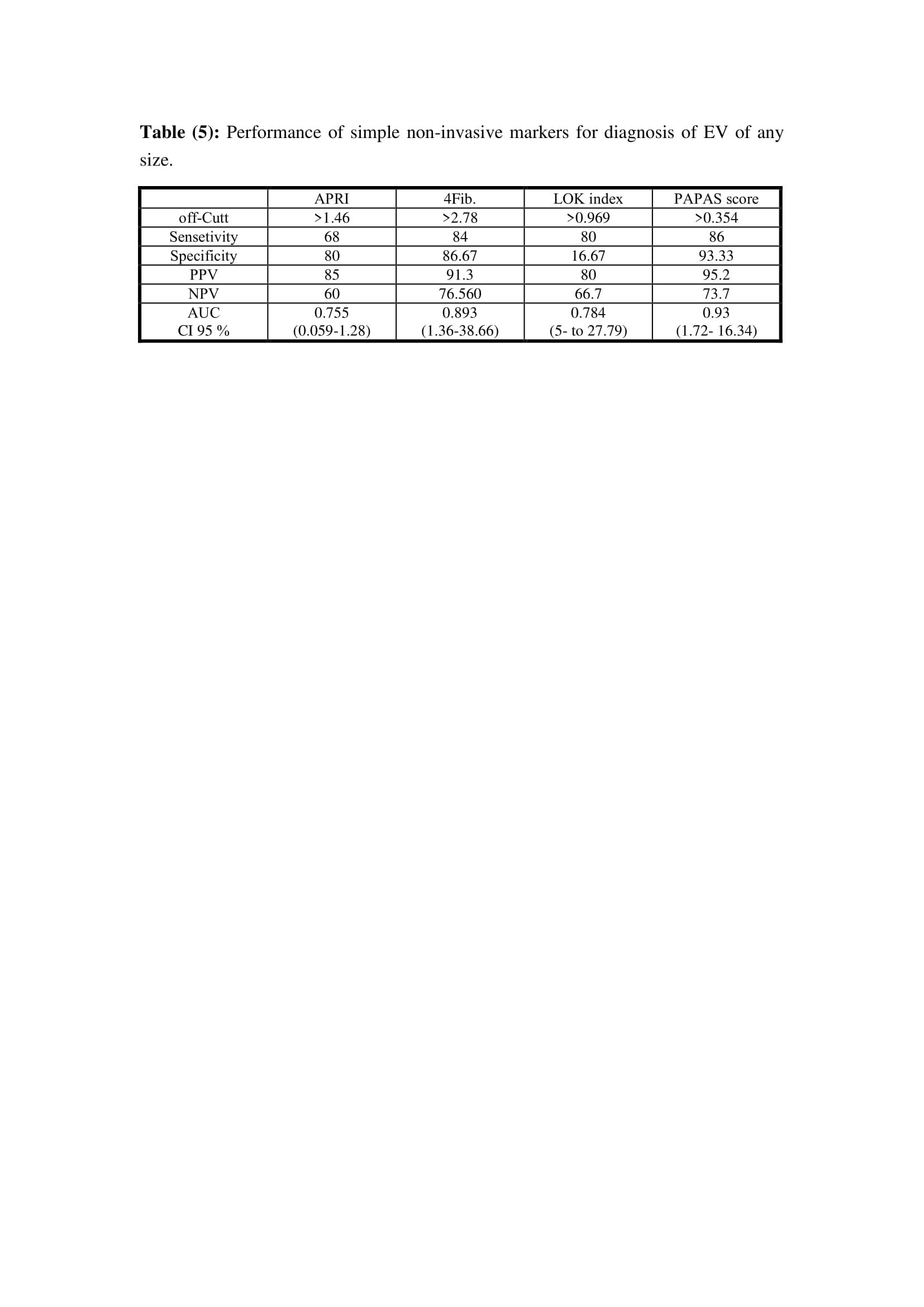

The Cutoff values for FIB-4 in the diagnosis of EVs and Large EVs are >2.78 and >4.06, respectively, with 84%, 69.23 % sensitivity and 86.67 %, 67.86 % specificity respectively (Table 3).
LOK score was proposed to have a cutoff value of >0.69 for the diagnosis of EV. At this cutoff, the sensitivity was 80%, the specificity was 66.67%, the PPV was 80%, and the NPV was 66.7 percent (AUROC was 0.784). Additionally, we established a diagnostic criterion of >0.87 for Large EV, with a sensitivity of 61.54 percent and specificity of 82.14 percent. AUROC was 0.787. (See Table 3)

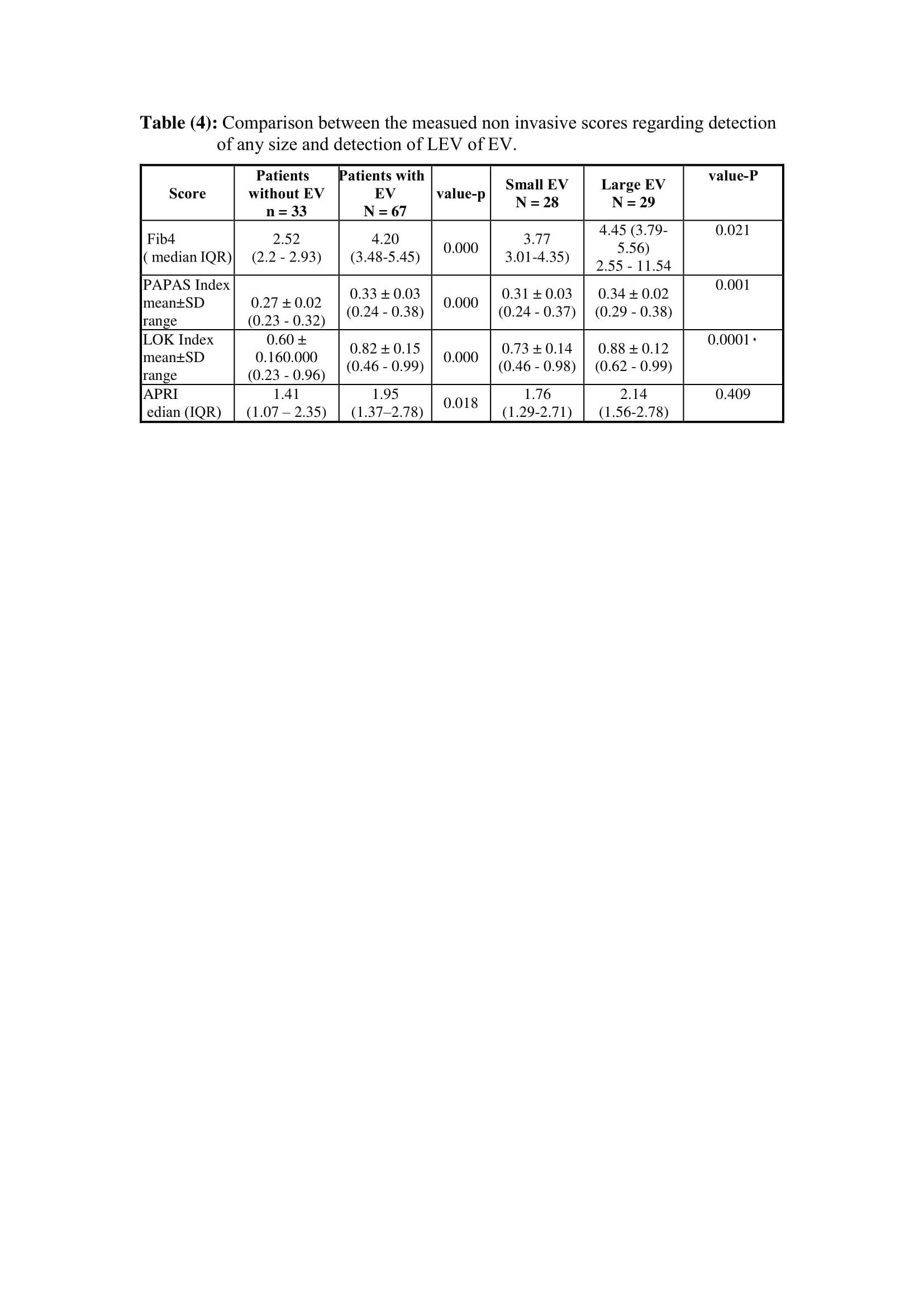

Patients with EV showed a significantly higher PAPAS index than those without EV in our study (Table 2). The PAPAS index exhibited a much higher diagnostic accuracy than the other tests assessed for detecting EV and large EV (APRI, FIB-4, and Lok Score). PAPAS index AUCs were 0.939 for diagnosis of EVs with 86 % sensitivity, 93.33 % specificity, 95.2 % PPV, 73.7 % NPV, and AUC 0.746 for detecting Large EVs with 94.87 % sensitivity, 86.43 %specificity, 71.2 % PPV, 86.7 % NPV, indicating its usefulness in identifying patients with large varices who require endoscopy, (Table 3) & (figure 2).
PAPAS index was the most significant independent predictor of the development of EV and large EV using the logistic regression model (Table 4).
DISCUSSION
Esophageal Varices are present in 30 to 40% of persons with compensated cirrhosis and in 60 to 85% of those with decompensated cirrhosis (at the time of diagnosis of cirrhosis). Since untreated varices have a significant risk of bleeding, it is important to determine who should undergo screening endoscopy to diagnose varices. Upon diagnosis of cirrhosis, screening esophagogastroduodenoscopy (EGD) is recommended to evaluate for the presence of gastroesophageal varices [20]. To maximize the yield and cost-effectiveness of endoscopic screening, it is necessary to identify clinical variables that accurately predict EV and aid in the identification of patients at highest risk [21]. 67% of patients in our study showed EV, with 40% having a large EV. According to D'Amico et al., EV was detected in 76 % of cirrhotic individuals who had ascites [22] in another study, Barrera et al. found that 85% of patients had EV and 57.9% had large EV in another study [23]. Additionally, Plianklin and colleagues discovered that 49% of patients had EV, with 10% having a substantial EV [24].
To date, numerous studies on the non-invasive detection of EV of any size and/or large EV in patients with cirrhosis have been published as full publications. To reduce the need for endoscopy, numerous non-invasive variceal screening indicators have been introduced [25-27].
In this study, we compared the ability of the most recent noninvasive score of liver fibrosis (PAPAS score) to predict the presence and size of EV in Egyptian patients with HCV-related liver cirrhosis to the gold standard for EV diagnosis (upper endoscopy). Additionally, we compare this novel score to the other scores (APRI, FIB-4, and LOK scores), which have been established in a number of studies to be useful in diagnosing EV. This is the first study to our knowledge that examines this one-of-a-kind score. Patients with EV, particularly those with high-risk varices, should be identified as candidates for prophylactic therapy through routine screening [28]. The size of the varices has been identified as the key predictor of variceal bleeding, which occurs in up to 30% of patients with a large EV and is linked with significant morbidity and mortality [29]. ROC analysis has become an important tool for evaluating diagnostic blood indicators for large EV or identifying large EV [30].
Previous research on APRI as a predictor of EVs in cirrhotic patients found that an AUC can predict EVs (0.62) and large EVs (0.71) in Liver Cirrhosis patients [32, 33]. Deng and colleagues proposed that the AUC for diagnosing any grade EVs was 0.539 with 68 % sensitivity and 46.2% specificity at a cutoff value of >0.87, whereas the AUC for predicting Large EVs was 0.506 with 68.8 % sensitivity and 41.3 % specificity at a cutoff value of >0.85.29 Despite a higher score for large EV (2.14 vs. 1.76), the difference in our results was statistically insignificant, the APRI score had no effect on predicting large varices. This finding can be explained by due to low number of patients in our study and different etiology of liver cirrhosis, HCV related liver cirrhosis only our study population and multiple etiology in others as viral hepatitis and alcoholic liver disease which may affect the predictability of the index for Esophageal varices.
We selected FIB-4 threshold values >2.78 and >4.06 (AUCs of 0.893 and 0.666, respectively) for the diagnosis of EVs and large EVs, with 84% and 69.23% sensitivity and 86.67% and 67.86% specificity, respectively. Our findings were consistent with those of Hassan and colleagues, who stated that Fib-4 had an AUC of 0.78 and 0.76, with a sensitivity of 76% and 72.9%, respectively, and a specificity of 80% and 66.7%, respectively, at cutoffs > 2.8 and 3.3 for the diagnosis of EVs and high-risk EVs [27]. A large multicenter study involving >600 cirrhotic patients was conducted to evaluate the performance of several simple serum non-invasive markers for diagnosing and grading EV (including platelets, AST-to-ALT ratio, AST-to-platelet ratio index, Forns' index, Lok index, Fib-4, and Fibroindex). The Lok index and Forn's index performed the best for EV diagnosis.34 The PAPAS score, on the other hand, was not examined in this multicenter investigation. Sebastiani and colleagues reported that the Lok Score performed satisfactorily in diagnosing EV (cutoff: 0.9, AUC: 0.77), but advised a cutoff value of 1.5 for diagnosing LEV (AUC: was only 0.69) [34]. Again, in their data, Fib 4 shown suboptimal performance (AUC: 0.64 & 0.63, cut-off: 3.5 & 4.3) for diagnosing EVs of any size and clinically significant EVs, respectively [34]. Previously, it was believed that the Lok Score was an excellent predictor of EV. In another prospective study, the most effective cutoff value for diagnosing significant EV was 0.8, with an AUROC of 0.731 and an NPV of 86.4% [35]. Lok Score with a cutoff value of >0.69 was proposed for EV diagnosis in our study, with a sensitivity of 80%, specificity of 66.67%, PPV of 80%, and NPV of 66.75% and 66.75%, respectively (AUROC; 0.784). Additionally, we proposed a criterion of >0.87 for the diagnosis of large EV, with a sensitivity of 61.54 %, a specificity of 82.14%, and an AUROC value of 0.787.
Patients with EV showed a significantly higher PAPAS index than those without EV in our study. The diagnostic accuracy of the PAPAS index in detecting EV (cutoff: >0.3, sensitivity 86%, specificity 93.33%, PPV 95.2%, NPV 73.7%, AUC; 0.939) and large EV (sensitivity 94.87%, specificity 86.43%, PPV 71.2%, NPV 86.7 %, AUC 0.746) was significantly higher than that of the other scores tested (APRI, FIB-4, and Lok Score), Using the statistical technique of logistic regression, it was determined that the PAPAS index was the most significant independent predictor of the development of EV and large EV.
According to the Baveno VI consensus, patients with liver stiffness < 20 kPa and a platelet count > 150,000 ul have very low risk of clinically significant varices and do not need a screening endoscopy, in our study, patients with varices had a significantly lower platelet count than those without (P value 0.001). Patients with large EV had a lower platelet count than those small EV (P value =0.101), although this was not statistically significant in predicting large EV, this result may be due to convergence of numbers of large EV patients 39 vs number of small varices 28 patient. As regard fibroscan, we cannot do to all patient for fanatical reason.
CONCLUSION
Our findings indicate that the PAPAS model and Fib 4 have the best diagnostic performance for detecting EV of any size, and the PAPAS and LOK scores have the best diagnostic performance for detecting LEV in HCV-related cirrhotic patients, and thus they may be used as an initial screening tool for cirrhosis to exclude those patients at extremely low risk of carrying EV. Additionally, the PAPAS approach may be beneficial in excluding large EV. None of these scores however, is accurate enough to completely replace endoscopy in the screening of cirrhotic patients, but they can be used to reduce the number of endoscopies required to screen these patients.
ACKNOWLEDGMENT
The authors would thank all colleagues who helped to conduct this study.
Funding : None.
Conflict of interest: None.
Ethical consideration :
Permission and official approval to carry out the study was obtained. All patients signed a written informed consent before inclusion into this study and the institutional ethical committee at Ain Shams University, Faculty of Medicine. The study protocol conforms with the ethical guidelines of the 1975 Declaration of Helsinki.
)
